A Impeller

DJ PUMP	Blade No.	A Diameter	B Depth	C Shaft Diameter	Material	Driven Type
081-0601	6	40mm (1.57")	40mm (1.57")	10mm (0.39")	Neoprene
08-41-0601	6	40mm (1.57")	19mm (0.74")	9.5mm (0.37")	Neoprene
08-31-0601	6	40mm (1.57")	19mm (0.74")	12mm (0.47")	Neoprene
09-107-0601	6	40mm (1.57")	19mm (0.74")	12mm (0.47")	Neoprene

B Impeller

DJ PUMP	Blade No.	A Diameter	B Depth	C Shaft Diameter	Material	Driven Type
08-37-0601	6	51mm (2")	22mm (0.86")	12.7mm (0.5")	Neoprene
08-39-0601	6	51mm (2")	22mm (0.86")	12mm (0.47")	Neoprene
08-31-0601	6	51mm (2")	22mm (0.86")	12.7mm (0.5")	Neoprene

C Impeller

DJ PUMP	Blade No.	A Diameter	B Depth	C Shaft Diameter	Material	Driven Type
008-1001	10	57.1mm (2.24")	50mm (1.96")	16mm (0.62")	Neoprene

D Impeller

DJ PUMP	Blade No.	A Diameter	B Depth	C Shaft Diameter	Material	Driven Type
08-21-1201	12	57mm (2.24")	31.5mm (1.24")	16mm (0.62")	Neoprene
08-22-1201	12	57mm (2.24")	31.5mm (1.24")	16mm (0.62")	Neoprene
08-32-1201	12	57mm (2.24")	20mm (0.78")	12.7mm (0.5")	Neoprene
09-105-1201	12	57.1mm (2.24")	48.1mm (1.89")	16mm (0.62")	Neoprene

E Impeller

DJ PUMP	Blade No.	A Diameter	B Depth	C Shaft Diameter	Material	Driven Type
08-38-1201	12	62mm (2.44")	32mm (1.25")	16mm (0.62")	Neoprene
09-106-1201	12	62mm (2.44")	22mm (0.86")	16mm (0.62")	Neoprene

F Impeller

DJ PUMP	Blade No.	A Diameter	B Depth	C Shaft Diameter	Material	Driven Type
08-20-1201	12	65mm (2.55")	41mm (1.61")	16mm (0.62")	Neoprene
08-36-1201	12	65mm (2.55")	51mm (2")	16mm (0.62")	Neoprene
09-44-1201	12	65mm (2.55")	80mm (3.14")	25mm (0.98")	Neoprene

G Impeller

DJ PUMP	Blade No.	A Diameter	B Depth	C Shaft Diameter	Material	Driven Type
001-0801	8	65mm (2.55")	50mm (1.96")	16mm (0.62")	Neoprene
001-0801N	8	65mm (2.55")	50mm (1.96")	16mm (0.62")	Nitrile
08-40-0801	8	65mm (2.55")	37mm (1.45")	16mm (0.62")	Neoprene
09-46-0801	8	65mm (2.55")	51mm (2")	16mm (0.62")	Neoprene

H Impeller

DJ PUMP	Blade No.	A Diameter	B Depth	C Shaft Diameter	Material	Driven Type
09-42-1001	10	65mm (2.55")	68mm (2.67")	16mm (0.62")	Neoprene
09-201-1001	10	65mm (2.55")	51mm (2")	19mm (0.74")	Neoprene
007-1001	10	65mm (2.55")	51mm (2")	16mm (0.62")	Neoprene

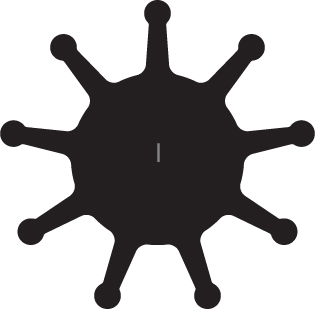

I Impeller

DJ PUMP	Blade No.	A Diameter	B Depth	C Shaft Diameter	Material	Driven Type
005-0901	9	79mm (3.11")	54mm (2.12")	20mm (0.78")	Neoprene
006-0901	9	80mm (3.14")	75mm (2.95")	20mm (0.78")	Neoprene

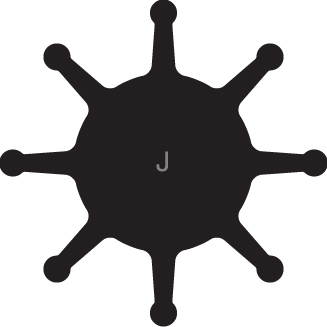

J Impeller

DJ PUMP	Blade No.	A Diameter	B Depth	C Shaft Diameter	Material	Driven Type
002-0801	8	80mm (3.14")	53mm (2.08")	20mm (0.78")	Neoprene
082-0801	8	80mm (3.14")	54mm (2.12")	19mm (0.74")	Neoprene

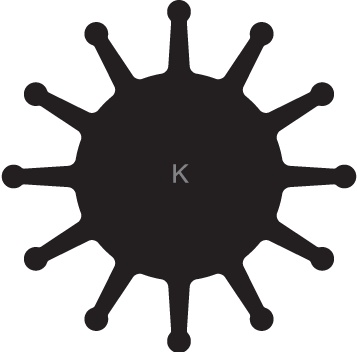

K Impeller

DJ PUMP	Blade No.	A Diameter	B Depth	C Shaft Diameter	Material	Driven Type
08-19-1201	12	82mm (3.22")	73mm (2.87")	20mm (0.78")	Neoprene
08-35-1201	12	82mm (3.22")	73mm (2.87")	19mm (0.74")	Neoprene

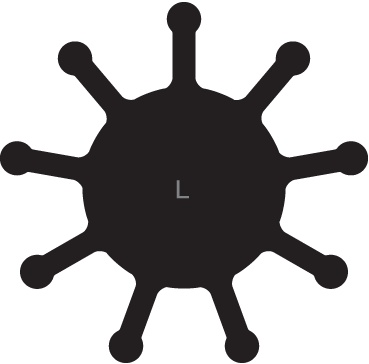

L Impeller

DJ PUMP	Blade No.	A Diameter	B Depth	C Shaft Diameter	Material	Driven Type
09-41-0901	9	92mm (3.62")	43mm (1.69")	25mm (0.98")	Neoprene

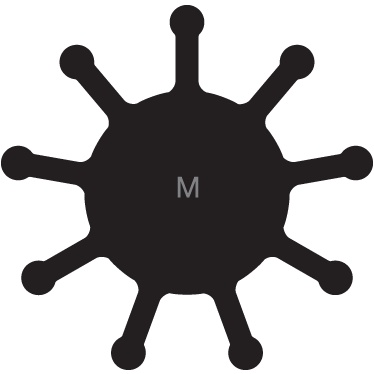

M Impeller

DJ PUMP	Blade No.	A Diameter	B Depth	C Shaft Diameter	Material	Driven Type
003-0901	9	95mm (3.74")	63mm (2.48")	25mm (0.98")	Neoprene
083-0901	9	95mm (3.74")	63mm (2.48")	25mm (0.98")	Neoprene
086-0901	9	95mm (3.74")	88.5mm (3.48")	25mm (0.98")	Neoprene
088-0901	9	95mm (3.74")	88.5mm (3.48")	25mm (0.98")	Neoprene
089-0901	9	95mm (3.74")	88.5mm (3.48")	25mm (0.98")	Neoprene
08-12-0901	9	95mm (3.74")	63mm (2.48")	25mm (0.98")	Neoprene
090-0901	9	95mm (3.74")	95mm (3.74")	25mm (0.98")	Neoprene

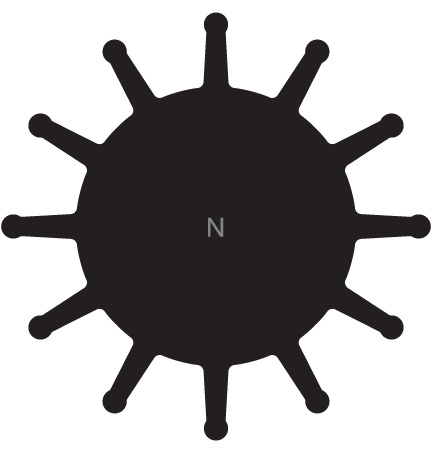

N Impeller

DJ PUMP	Blade No.	A Diameter	B Depth	C Shaft Diameter	Material	Driven Type
003-1201	12	95mm (3.74")	63mm (2.48")	25mm (0.98")	Neoprene
086-1201	12	95mm (3.74")	88.5mm (3.48")	25mm (0.98")	Neoprene
087-1201	12	95mm (3.74")	63mm (2.48")	25mm (0.98")	Neoprene
088-1201	12	95mm (3.74")	88.5mm (3.48")	25mm (0.98")	Neoprene
08-30-1201	12	95mm (3.74")	130mm (5.11")	25mm (0.98")	Neoprene
08-33-1201	12	95mm (3.74")	102mm (4.01")	25mm (0.98")	Neoprene
08-34-1201	12	95mm (3.74")	80mm (3.14")	25mm (0.98")	Neoprene
09-45-1201	12	95mm (3.74")	95mm (3.74")	25mm (0.98")	Neoprene

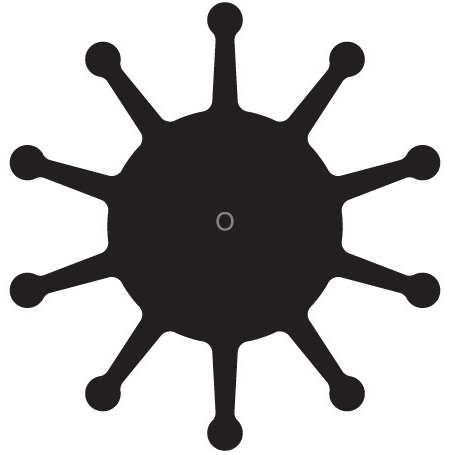

O Impeller

DJ PUMP	Blade No.	A Diameter	B Depth	C Shaft Diameter	Material	Driven Type
003-1001	10	95mm (3.74")	63mm (2.48")	25mm (0.98")	Neoprene

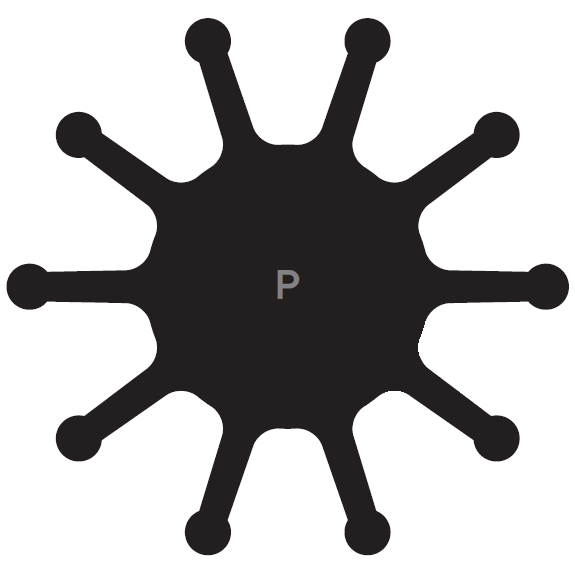

P Impeller

DJ PUMP	Blade No.	A Diameter	B Depth	C Shaft Diameter	Material	Driven Type
09-48-1001	10	103mm (4.05”)	100mm (3.98”)	25mm (0.98")	Neoprene

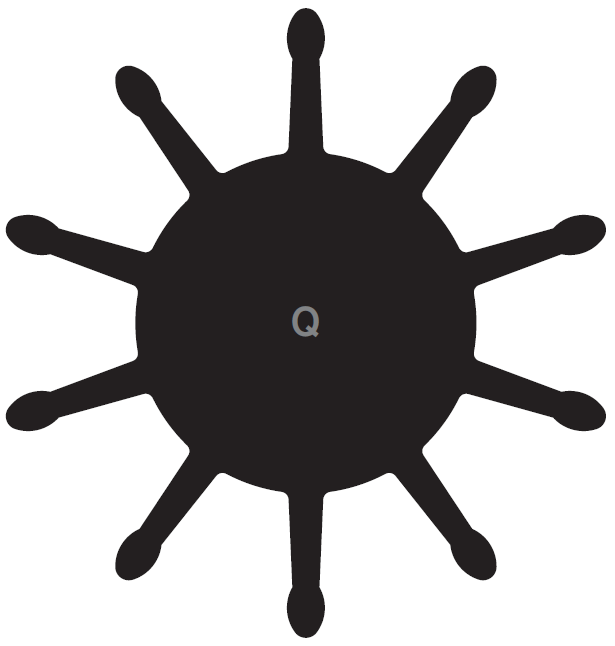

Q Impeller

DJ PUMP	Blade No.	A Diameter	B Depth	C Shaft Diameter	Material	Driven Type
08-14-1001	10	115mm (4.52")	104mm (4.09")	25mm (0.98")	Neoprene
09-49-1001 (45˚ Spline)	10	115mm (4.52")	110mm (4.33")	25mm (0.98")	Neoprene
09-49-1001T (30˚ Spline)	10	115mm (4.52")	110mm (4.33")	25mm (0.98")	Neoprene

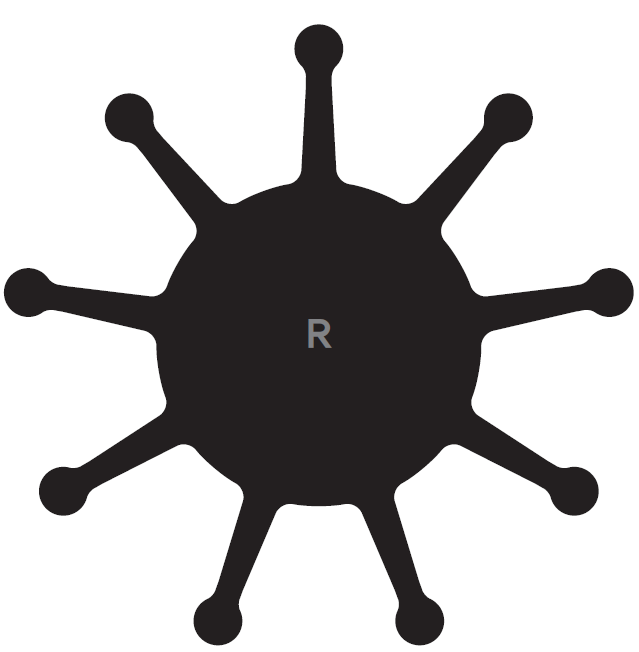

R Impeller

DJ PUMP	Blade No.	A Diameter	B Depth	C Shaft Diameter	Material	Driven Type
08-15-0901	9	118mm (4.64")	88.9mm (3.5")	25mm (0.98")	Neoprene
08-16-0901	9	118mm (4.64")	88.9mm (3.5")	25mm (0.98")	Neoprene

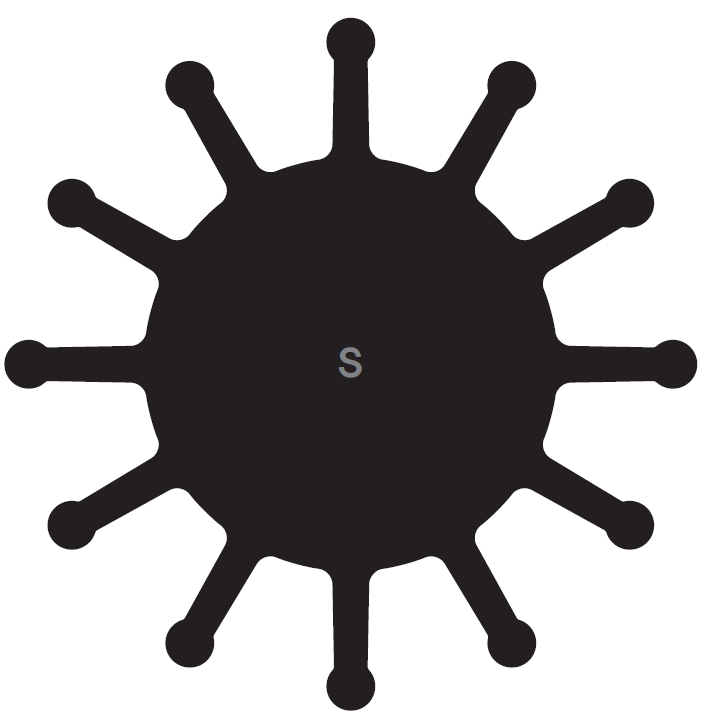

S Impeller

DJ PUMP	Blade No.	A Diameter	B Depth	C Shaft Diameter	Material	Driven Type
08-17-1201	12	129mm (5.07")	101.5mm (3.99")	36mm (1.41")	Neoprene
08-17-1201N	12	129mm (5.07")	101.5mm (3.99")	36mm (1.41")	Nitrile

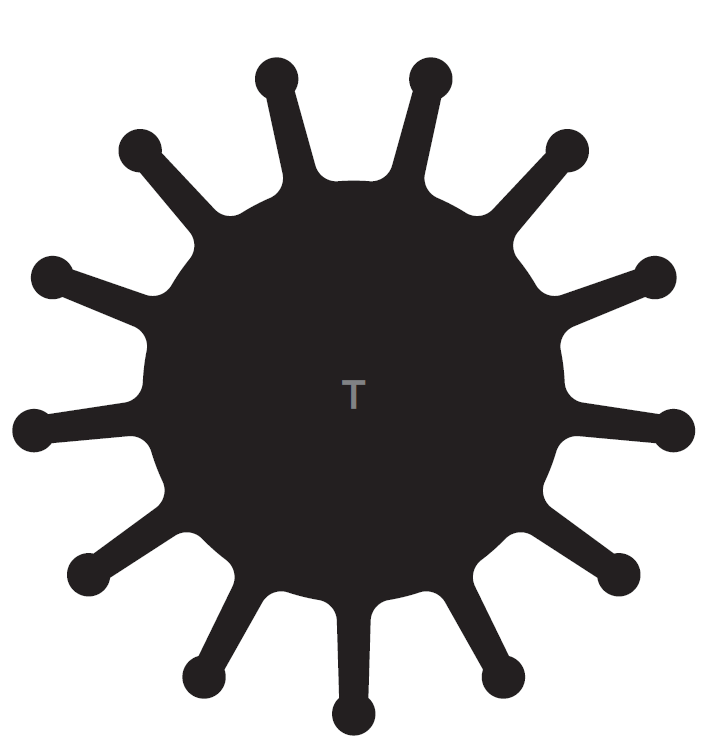

T Impeller

DJ PUMP	Blade No.	A Diameter	B Depth	C Shaft Diameter	Material	Driven Type
08-18-1301	13	129mm (5.07")	127mm (5")	36mm (1.41")	Neoprene
09-17-1301	13	129mm (5.07")	101.5mm (3.99")	36mm (1.41")	Neoprene

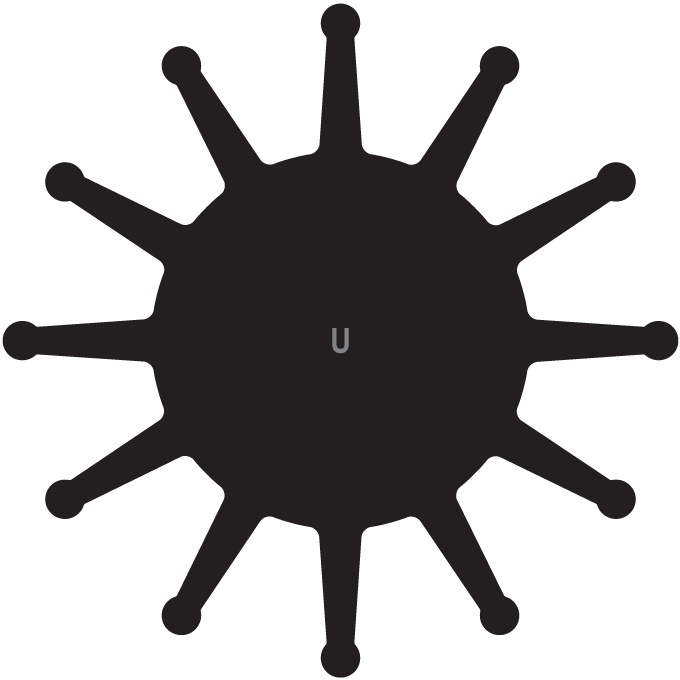

U Impeller

DJ PUMP	Blade No.	A Diameter	B Depth	C Shaft Diameter	Material	Driven Type
09-43-1201	12	161mm (6.33")	120mm (4.72")	36mm (1.41")	Neoprene
