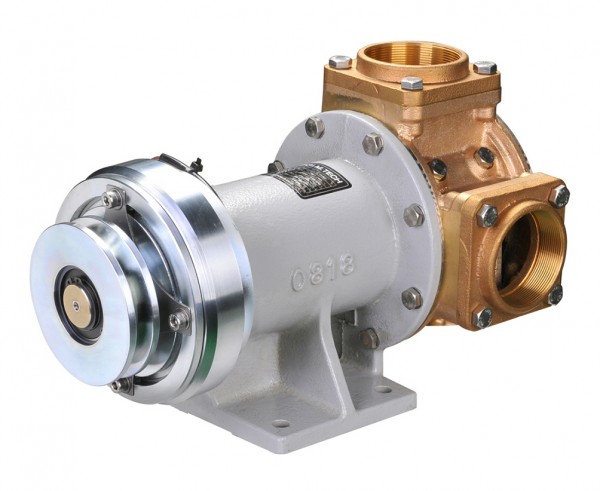

ELECTRIC CLUTCH PUMPS

DJ-EMP2006

페이지 정보

profile_image
작성자 동진아이엠테크
댓글 0건 조회 187회 작성일 21-02-02 18:30

본문



COMMENT


- Suitability for bliage under ship and deck cleaning and fighting the fire


- Easiness to operate the pump installing the switch inside of the ship and wheelhouse


- uses the electronic clutch pump at the voltage of from 12 to 24.


- Simplicity to install and operate because of the unnecessariness of depleting the air and filling out the water.


- Easiness to change the parts. Impeller can easily be changed by the unting the front cover.


- Possibility of lashing and backlashing


- Can be used as multi-functional pump which can carry the high viscosity of fluid, solid body, and sludge/slurry


- Selective installation of the rubber impellers between CR rubber which has strong durability and intensity and NBR rubber which has strong anti-oil nature.



Usage of the flexible electronic clutch pump : For ship ( Bilge under the ship , deck cleaning, Fighting the fire)






DETAIL INFO

Body / Housing FCD / Bronze Ports 3" (80mm) Pipe
Driven Type Electro-Magnetic Clutch Impeller No. 09-43-1201
Pulley 5” (130mm) / Double B Groove Seal No. Mechanical Seal(DJ-MS040)
Clutch 24V Weight 40 Kg
Shaft Stainless Steel
