FLEXIBLE IMPELLER PUMPS

DJ-U005

페이지 정보

profile_image
작성자 동진아이엠테크
댓글 0건 조회 579회 작성일 -1-11-30 00:00

본문


COMMENT


- It doesn't need hood valve because of the strong self-sucking in rotation.


- Simplicity to install and operate because of the unnecessariness of defleting the air and filling out the water.


- Easiness to change the parts. Impeller can easily be changed by the unting the front cover.


- Possibility of lashing and backlashing


- Multi-functional pump which can carry the high viscosity of fluid, solid body , and sludge/slurry


- Selective installation of the rubber impellers between CR rubber which has strong durability and intensity and NBR

  rubber which has strong anti-oil nature.



The usage of the flexible pump : For ship, seawater, manufacturing industry, food, farming, brewing and chemical medicine

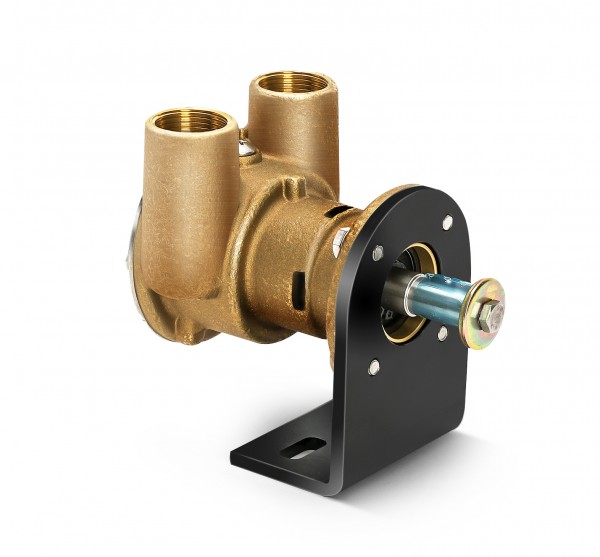

1. DETAIL INFO

Body

Brass

Ports PT 3/4” (20mm) PIPE
Driven Type Pulley Impeller No. 08-21-1201
Driven Shaft
13mm Seal Mechanical Seal
Shaft Stainless Steel Weight (1.8Kg)
